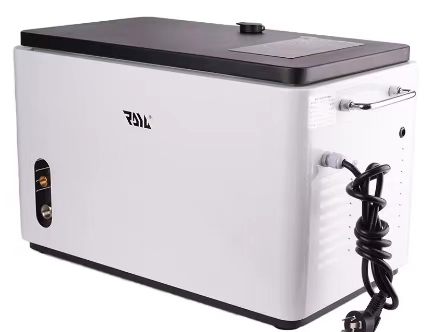

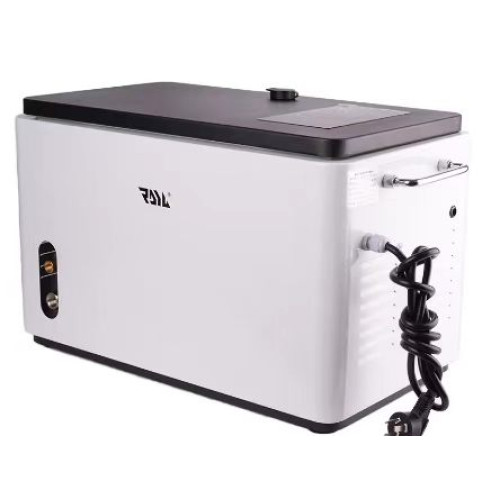

FOGGING MACHINE-R5/50A

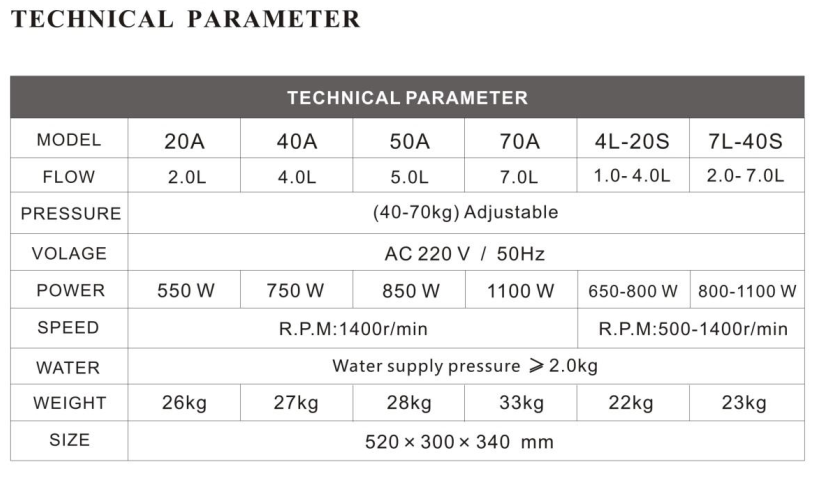

Different models are available according to the area to be covered

Compact and efficient professional fogging/misting system designed for

cooling and humidity control in small to large areas.

Ideal for residential, commercial, and agricultural applications.

Add fragrance to your space by attaching a venturi injector and liquid perfume

Venturi injector

Pump Head

Fluid end (yellow valve body): *Brass (copper alloy)*;

Black section of the pump housing: *Die-cast aluminium alloy*;

Internal plungers: *Ceramic plungers* (wear-resistant and corrosion-resistant).

Motor

Motor housing: *Cast iron* (an aluminium-housed version is also available within the same series);

Internal motor windings: *Pure copper coils*;

Motor end caps / cooling structure: Cast iron or aluminium alloy.

Key Features

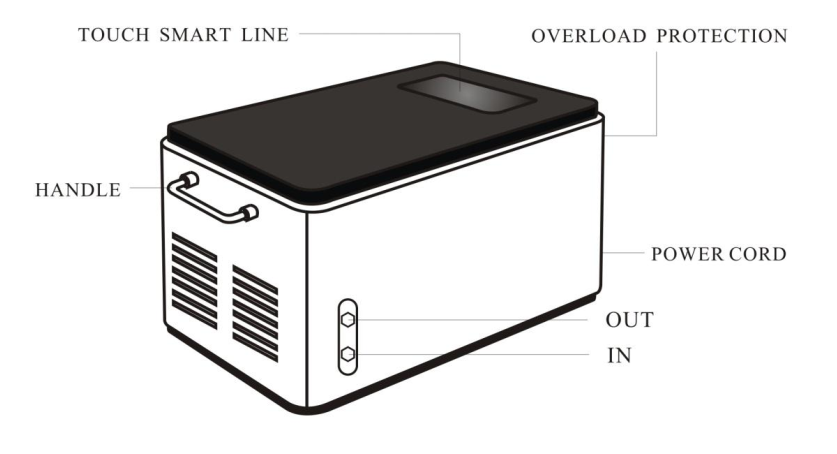

Touch screen - Remote control - Low noise around 45 dB

Digital timer for automatic operation

Can draw water only from a water tap/faucet

Adjustable pressure control for mist/fog effect

Requires oil for operation

Key lock  to prevent unauthorized operation

Compact and user-friendly design-Fiber case- Easy to carry

Applications

Outdoor cooling (cafés, terraces, patios)

Greenhouses & nurseries

Poultry farms - Dust suppression

Commercial Details

Price: All prices are inclusive of 18% GST

Warranty: 1 year against manufacturing defects

Post-Warranty Service: Chargeable

Support & Services

Online technical guidance for installation

Paid installation available at selected locations

 Please click here for the YouTube video

Video-2

Accessories and fittings are not included in this package:

Please consider buying the following items separately, as per the actual requirement

1- High-pressure nylon or PE tube (Size of tube is: 3/8" (9.525mm)

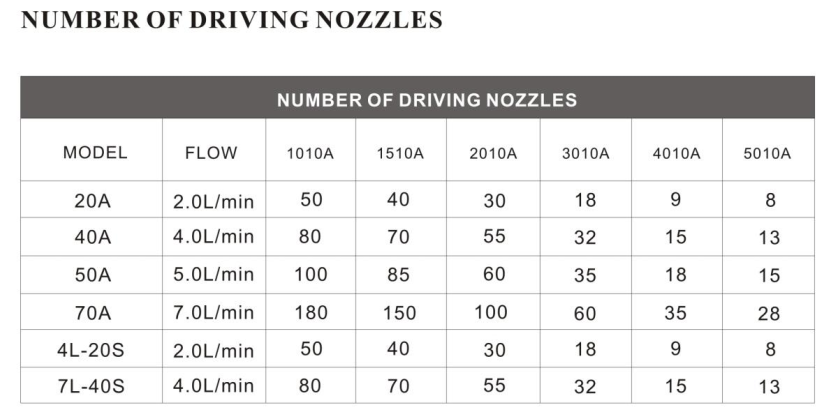

2-Nozzles (Orifice of Nozzles should be:  0.10mm to 0.15mm)

 (Distance from one nozzle to another should be 1 to 1.5 meters)

3- Required number  of slip lock connectors and  fittings, including

End caps, T and Elbow connectors, Manual valves, Clamps etc

4- Water filter with filter media for 0.5um  filtration

5- Venturi injector complete set if liquid perfume is to be added

Pipe cutter. Metal clamp and wire ties as per requirement

For an estimation, we require the following details :

1) Drawing of the proposed area with measurements in Centimeters

2) Images and a short video of the area to be fogged

3) Length X Width X Height of the area to be fogged

4) Length of total high pressure tube required ( from power point till end line)

Keep the nozzles 8 to 10 feet above the ground level for the misting effect
Not advisable for long-period operation in closed areas
Misting will not leave any water on the floor as in normal spraying
Misting will help to avoid mixing of animal discharge with water
INSTALLATION MANUAL INCLUDED
Make an adjustable height arrangement for a specific industrial purpose

ORDERS ARE ACCEPTED AGAINST 50% ADVANCE PAYMENT

DIRECTLY IMPORTED AS PER CONFIRMED ORDER

LEAD TIME FOR THE SUPPLY IS 30 TO 45 DAYS
