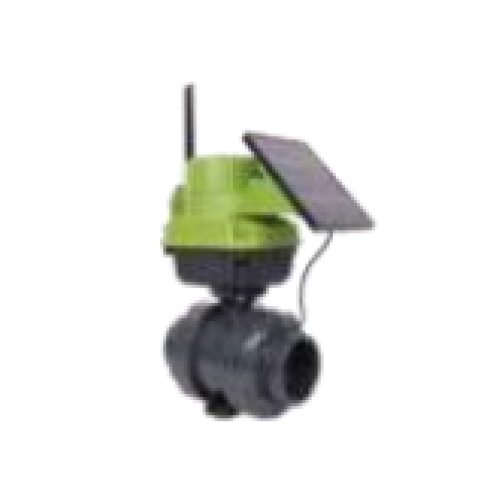

SMART BALL VALVE WITH ACTUATOR FOR 2 INCH PIPE

2 INCH(DN50)-IMPORTED

Solar Power + Military Grade Battery/ 4G GSM control-Imported

The QT-15F,20F,50F and 100F series uses a large detachable solar panel +

lithium battery pack or external DC power.

Various torque options and valve diameters from DN150 to DN300 are supported.

Optional flow meters, pressure sensors and water level sensors are available.

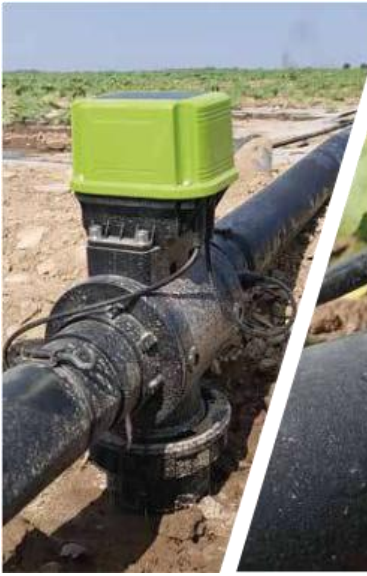

Widely deployed in smart irrigation and pipeline control systems for landscaping,

agricultural irrigation, and greenhouse applications

FEATURES OF 02F05 ACTUATOR WITH PVC BALL VALVE (DN50-2 INCHES)

 The valves automatically adjust openings to balance water distribution

Material: Valve body PVC / Cast iron or Metal valves are also available as per request
Power supply : Solar power + Military grade 12V batteries
Communication protocol : 4G
In case of no Internet, manual operation is possible
Torque : 50N.M
Max Valve Diameter : DN50/ 2 INCH
Protection Ring : IP67
Ambient Temperature : -40C to 80C
Medium Temperature  " 1 to 80C
Optional products you can add :
Flow meter / Pressure sensor
