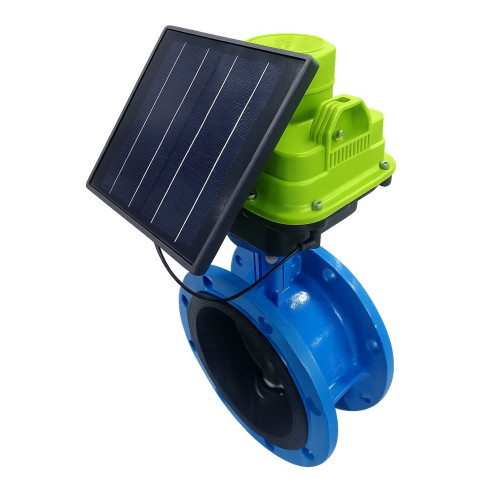

ACTUATOR WITH BUTTERFLY VALVE FOR DN200
for 8 Inch (200DN)supply lines
Solar powered-4G GSM control-Imported

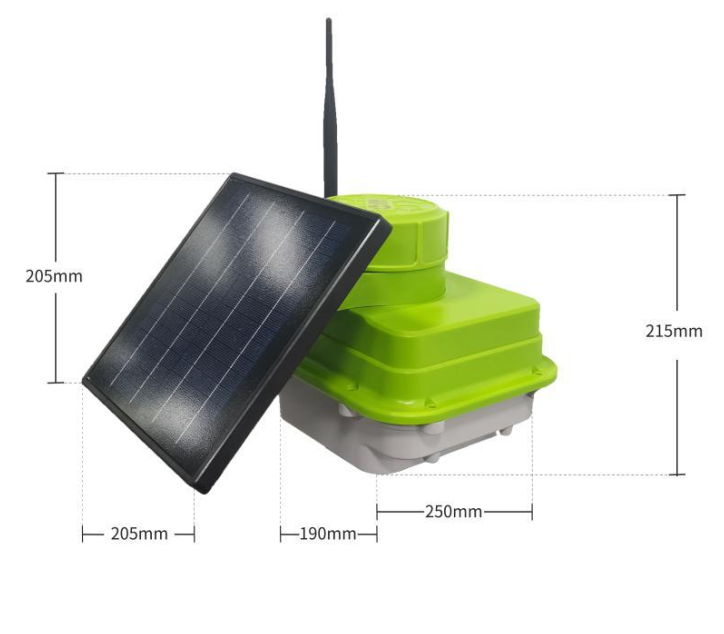

The QT-15F,20F,50F and 100F series uses a large detachable solar panel +
lithium battery pack or external DC power.
Various torque options and valve diameters from DN150 to DN300 are supported.
Optional flow meters, pressure sensors and water level sensors are available.
Widely deployed in smart irrigation and pipeline control systems for landscaping,
agricultural irrigation, and greenhouse applications
FEATURES OF 20F ACTUATOR WITH METAL BUTTERFLY VALVE(DN200- 8 INCHES)
The valves automatically adjust openings to balance water distribution
Material: Valve body Cast iron, Disc SS304
Power supply : Solar power + Military grade 12V batteries
Communication protocol : 4G
In case of no Internet, manual operation is possible
Torque : 200N.M
Max Valve Diameter : DN200
Protection Ring : IP67
Ambient Temperature : -40C to 80C
Medium Temperature " 1 to 80C
Optional products you can add :
Flow meter / Pressure sensor/ Water level sensor
Weight and volume: 26kg - Volume 0.01cbm
lithium battery pack or external DC power.
Various torque options and valve diameters from DN150 to DN300 are supported.
Optional flow meters, pressure sensors and water level sensors are available.
Widely deployed in smart irrigation and pipeline control systems for landscaping,
agricultural irrigation, and greenhouse applications
FEATURES OF 20F ACTUATOR WITH METAL BUTTERFLY VALVE(DN200- 8 INCHES)
The valves automatically adjust openings to balance water distribution
Material: Valve body Cast iron, Disc SS304
Power supply : Solar power + Military grade 12V batteries
Communication protocol : 4G
In case of no Internet, manual operation is possible
Torque : 200N.M
Max Valve Diameter : DN200
Protection Ring : IP67
Ambient Temperature : -40C to 80C
Medium Temperature " 1 to 80C
Optional products you can add :
Flow meter / Pressure sensor/ Water level sensor
Weight and volume: 26kg - Volume 0.01cbm
For terms and discounts, please click here
SKYPE: www.vikon.in / WhatsApp :+91-8089811575Call: 91-8089811575 for English / Malayalam and 91-9846093390 for Hindi Copyright of images is vested with their respective owners
Actuator with butterfly valve for DN 200(8 Inch) Solar powered-4G control - Imported(Code:0391-vikon.in)
- Product Code: 0391
- Availability: Pre-Order with Advance Payment
-
Rs.71,424/-
- Ex Tax: Rs.60,529/-
