The performance of foggers depends on the water pressure,
size of orifice, type of filter etc
This four head fogger provides a fogging effect in agricultural irrigation
This fogger can either be connected directly with the 16mm PE hose
or hanged down a 4mm feeder tube.
Water pressure / Discharge / Radius 1.5bar / 7.8 Liter per hour / Radius is 0.20 Mtr 2.5bar / 9.6 Liter per hour / Radius is 0.25 Mtr / 3bar / 10.5 Liter per hour / Radius is 0.30 Mtr Overhead range is measured by 1 meter from the ground Normally hanged down on 4mm feeder tube from a 16mm PE hose / Overhead range is measured by 1 meter from the ground Normally hanged down on 4mm feeder tube from a 16mm PE hose
Foggers and sprayers needs to be given required water pressure and flow of water Required pressure is given in the description Required water flow can be calculated by dividing the available flow by the total number of foggers/sprayers installed
SKYPE: www.vikon.in / WhatsApp :+91-8089811575 Call : 91-8089811575 for English / Malayalam and 91-9846093390 for Hindi Copy right of images are vested with their respective owners

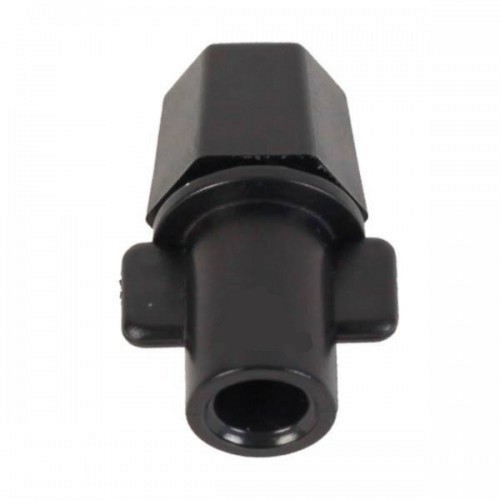

Single Outlet Fogger head with 4mm Adapter -Black (Code:0094-www.vikon.in)
