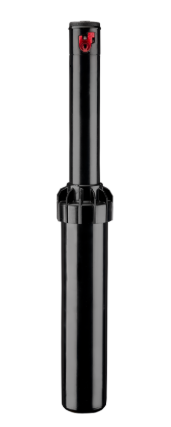

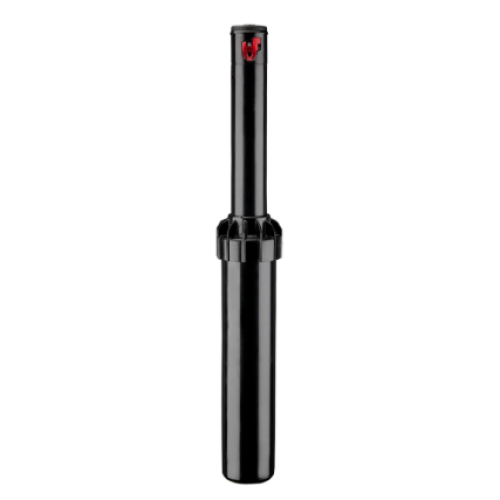

HUNTER PGJ 06 ROTOR

Body height 9.50 inches- Pop-up 6 inches

Dimensions
Height: 97.50" / Pop-up Height: 6"
Diameter: 1.13"
Operating Specifications
Radius: 15' to 34' / Arc: 40° to 360°
Operating Pressure: 60 to 100 PSI
Precipitation Rate: 0.6 in/hr
Flow: 0.36 to 9.8 GPM
Warranty period: 2 years
1/2 inch female inlet-BSP threads-Imported

Adjusting the radius

Ensure that the nozzle is fully screwed down onto the pop-up or shrub body assembly.

To decrease the radius, hold the top of the nozzle edge using your hand.
 Next, turn the screw in the clockwise direction using a small flathead screwdriver.
  If you need to reduce the radius more than 25%, install a smaller radius nozzle for this location.
