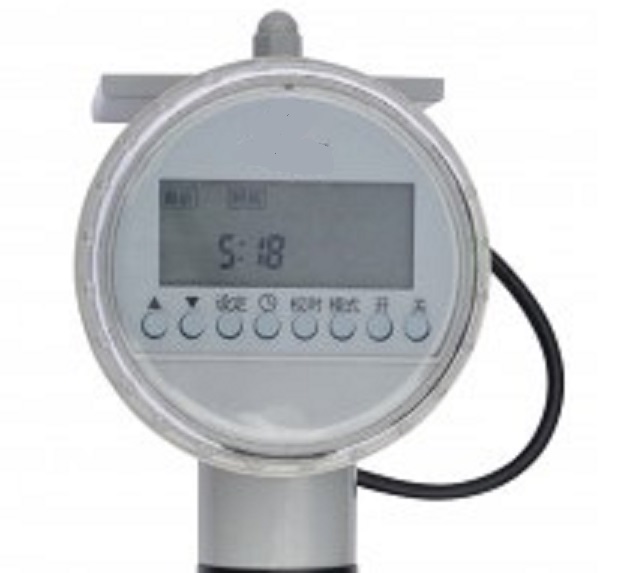

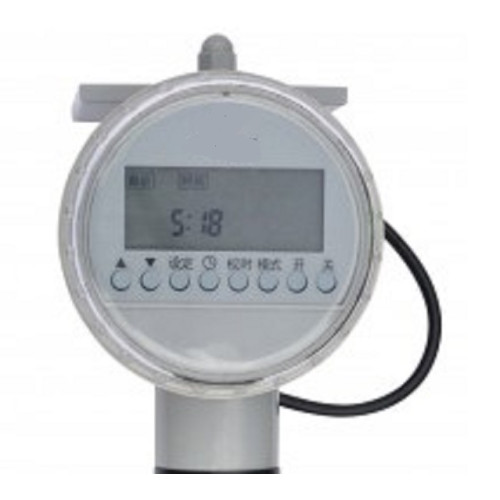

HEAD UNIT OF DIGITAL WATER TIMER USED

WITH SOLENOID VALVE -SOLAR POWERED

Replacement part to be used with its Solenoid valve

Sold only to our existing customers in case their timer unit fails o operate

Imported- One year warranty

 Solar powered - Helps to avoid main control unit

No electric wiring- Works on 9V battery - Can directly fix on PVC water supply line

Synchronized with Greenage  Solenoid valve.

The valve opens and closes according to the settings of the timer

Installation of this device replaces the main control unit and the

conventional and complicated wiring used to automate garden irrigation

TOTALLY SOUND FREE TIMER AND SOLENOID VALVE

Please click here for the YouTube video

How it works

Timer settings

Sold with one year warranty against manufacturing defects

Price include Water timer and Solenoid valve only

Existing customers can purchased separately in case the timer unit fails to operate

Protective cover for the unit is sold separately

Features and specification of Digital solenoid Water Timer

Digital Type Water Timer with solar panels and 8 different run time and frequency settings.

Water supply line is directly connected with the solenoid valve and it works in tune

with your water timer programs/settings

Operates on a  9V box type normal or rechargeable battery

You can set a total  8 ON settings per day for any day in a month

When connected with a pressure pump, the pump will switch on and off

automatically according to the settings of your water timer

 (Solenoid valve opens at your timer settings allowing water to flow

and  the pressure pump start working. when the valve closes, pump stops)

What is a Solenoid valve

A solenoid valve regulate the flow of water in an irrigation system.
By applying a voltage over the coil, the valve opens and the liquid/water start flowing through the supply line. Solenoid
valves are used for the automatic on and off control  of liquids and gas, including dilution of pesticides and liquid
fertilizers  with water for agricultural purpose. Solenoid valves are also used for the automatic diversion  of the flow.
This irrigation series of Solenoid valve has a pilot-type pulse valve
Counter clock wise rotation opens and the clock wise rotation closes it

HOW TO SET UP THE TIMER

To easily setup the timer, gently lift and carefully detach the timer connection from its solenoid valve

Open the back cover and insert the 9V battery

Time appear in two digits - Set the current time by pressing TIME and then CURSOR up and down

Timer has 24 hour time format - Press SET to set your current time in 24 hour format

Press PROGRAM and your first program is displayed

-You have a total 8 programs available for each day

PROG 1- Press SET

START TIME-Use Cursor to adjust and press SET

RUN TIME- Use cursor to adjust and press SET

DAYS IN A MONTH-Use cursor and press SET

(Use up and down cursor button on the left  to adjust program features)

when all your required programs are set, finally press OFF

OFF indication on the display screen will turn to ON when the program is functioning

Like wise, you may set either all 8 programs or any number of programs that you require

If you want only 2 watering timings in a day, only two programs will be sufficient

When you reinstall the battery, you have to reset the current time only

To test the functioning of timer and solenoid valve any time, please follow this

Press ON

Timer indicates current time and run time

Use CURSOR and SET buttons and set up the run time in hours or minutes

Timer makes  a tick sound and the ON is displayed

Water is delivered and the Timer displays OFF when the run time is over



For terms and discounts, please Click here
