SOLAR POWERED WIFI WATER CONTROLLER

WITH ONE INCH BALL VALVE

Model :  QT-01EFGA

SOLD WITH ONE YEAR WARRANTY

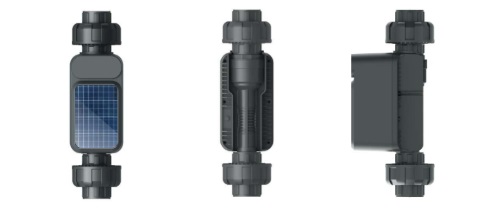

This solar powered water controller is equipped with a 1-inch ball valve.
If required, this valves can be equipped with a high-precision flow meter.
 There are 3 models, using different power supply methods.

1) Solar 2) Solar and Lithium battery 3) External power supply
4G and RS485 wireless communication protocols are optional,
enabling remote control through mobile APP, computer web, and central console.
4G control has two options 1) Lithium battery 2) Solar power
Widely used in intelligent irrigation, pipeline control and agricultural plantations.
It has many more functions and is easy to operate.

Features of the product

1. Remote control via mobile phone or computer

2. Powered by lithium sub-battery

3. The operation control functions are relatively more comprehensive

 ①Single control; ②Duration control; ③Capacity control (after connecting to flow meter);

④Cycle control; ⑤Timing control.

4. Control the valve opening percentage, that is, control over the flow

5. Optional flow meter, using high-precision ultrasonic flow meter

6. After connecting to the flow meter,

A- You can set the flow rate and control the water consumption

 B-. Fault alarm, pipeline water shortage alarm, low battery alarm

 C. When watering is turned on, the valve status, watering volume

and usage time are fed back to the mobile phone in real time

7. Real-time mode, power-saving mode, and sleep mode.

8. A access background tasks before starting the timing.

(A rain sensor is connected, and a task is set to prevent the valve from starting when it rains.

If the task is accessed in the background before the scheduled start,

the scheduled task will not start when it rains.

9. Manual magnetic switch function  12. Device message push

10. Round robin irrigation function, multiple devices can be queued for irrigation in sequence

11. Log function to record monthly and each water consumption and its duration

12. 4G, Lora, LoraWAN, and RS485 communication protocols are optional.

13. Personnel management function, setting up sub-accounts and allocating management equipment

14. Intelligent linkage function 15. Signal strength indication

16. Zero pressure switching valve protects from damage to valves, pipes and nozzles.
